Lovoski HDMI Extractor


Compare

HDMI Splitter 1×2 Audio Extractor 2Port Hub Amplifier 3D 4K 1080p

$79.00 inc. GST

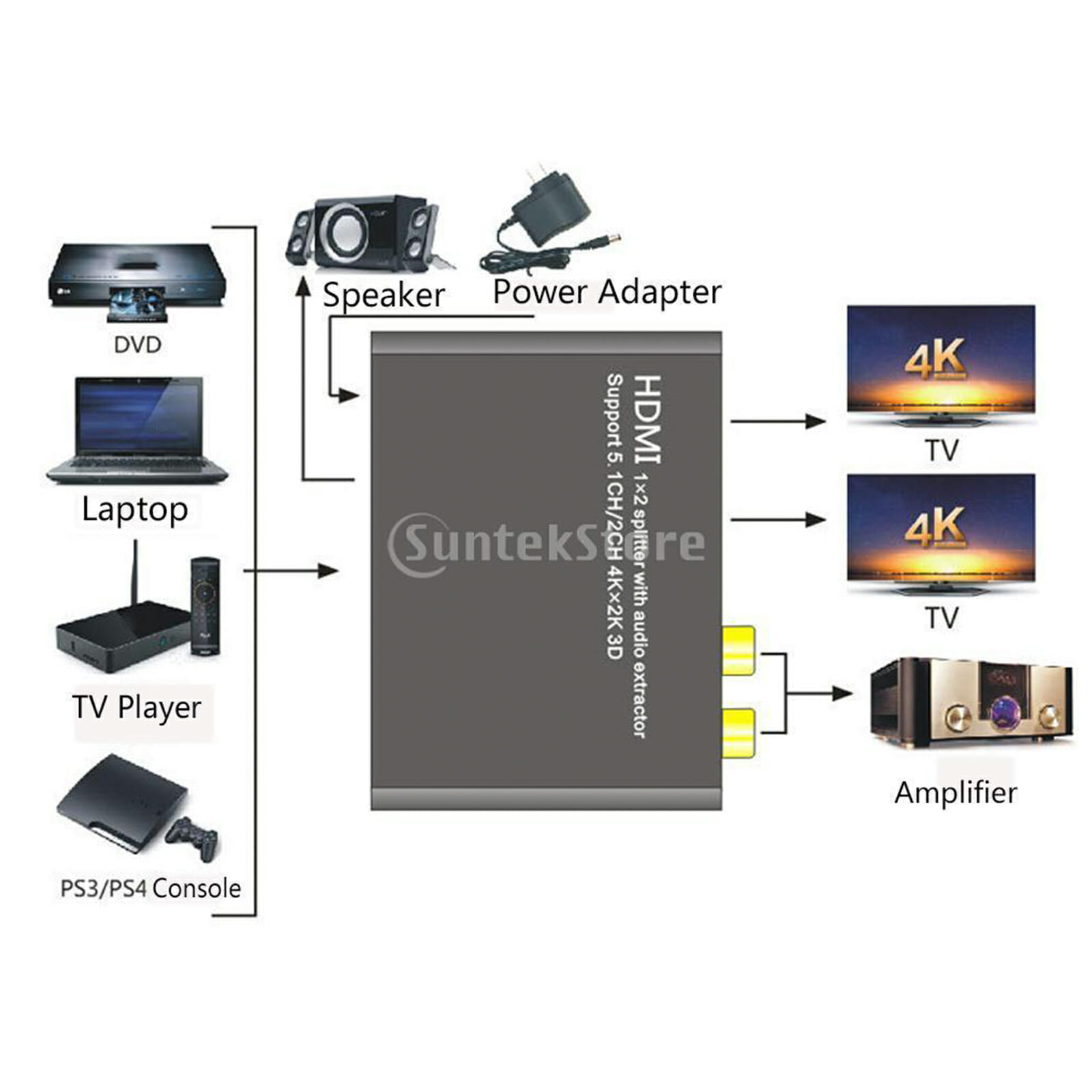

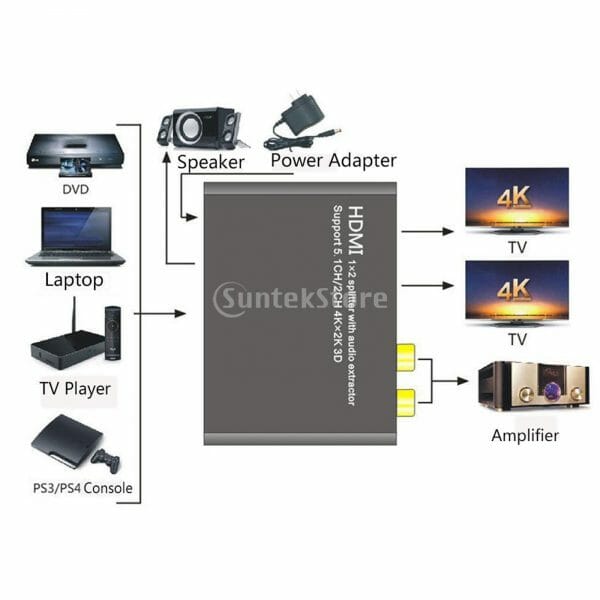

  • All the way HDMI signal input, assigned to two HDMI output, and the simultaneous separation of the audio signal to support 1 SPDIF optical digital audio output and 1 L / R stereo analog audio output
  • HDMI resolution up to 4K / 30fs, support for 3D.
  • SPDIF optical output supports Dolby Digital AC3, DTS, LPCM and other digital audio formats, support 5.1CH output
  • Support 2 kinds of audio EDID read mode (2CH / 5.1CH) to switch between, used to select the stereo or 5.1CH audio output
  • With the output status indicator, when the corresponding output port is in working condition, the corresponding indicator will light
  • Using 24bit / 192KHz DAC chip to ensure high quality sound quality
  • No signal loss
SKU: LOVOSKI-HDMI-SPLITTER Category:
Weight 0.7 kg
Dimensions 15 x 12 x 8 cm
  • HDMI input and output resolution: up to 4K / 30fs
  • HDMI supports video color formats: 24 bit / dark 30/36 bit
  • HDMI Support Audio formats: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
  • SPDIF Digital Audio Format: Dolby Digital (AC3) / DTS / LPCM
  • HDMI maximum transmission bandwidth: 300MHz
  • HDMI maximum transmission speed: 10.2 Gbps
  • Input and output TMDS signal: 0.5 ~ 1.5Vp-p (TTL)
  • Input and output DDC signal: 5Vp-p (TTL)
  • DAC sampling frequency: 32 ~ 192 KHz
  • DAC bit rate: 16 ~ 24 Bit
  • RCA Analog Output (1KHz @ 0dB): 1V RMS
  • Signal to noise ratio @ 0dB (CC1R / ARM): ≥ 90dB
  • Distortion: ≤0.1%
  • Frequency response: 20HZ ~ 20KHz
  • Material: iron shell
  • Size: 11.2×6.2×2.4CM
  • Scope of application: It can be applied to places and data center control with noise, transmission distance and security restrictions, information distribution, conference room demonstration, digital environment and company training places.
